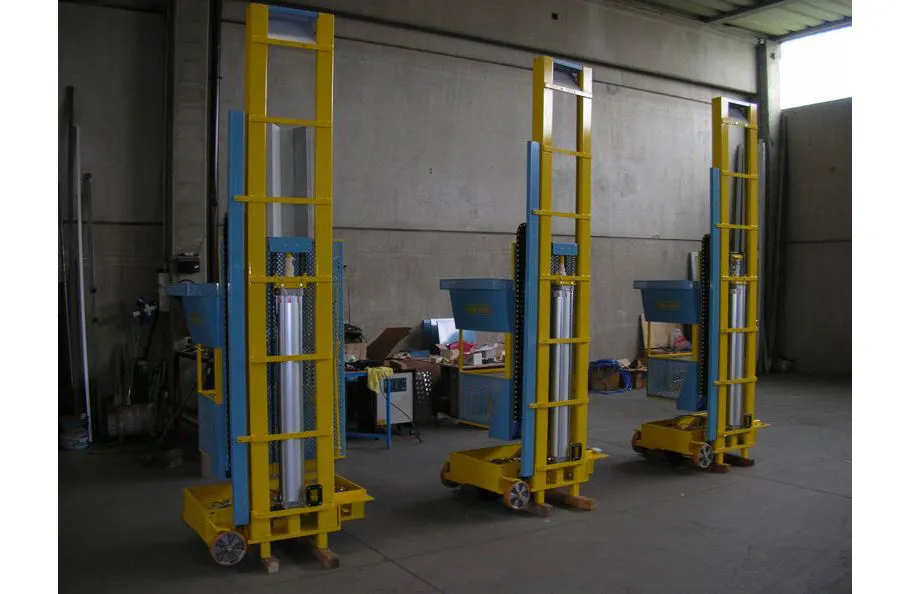

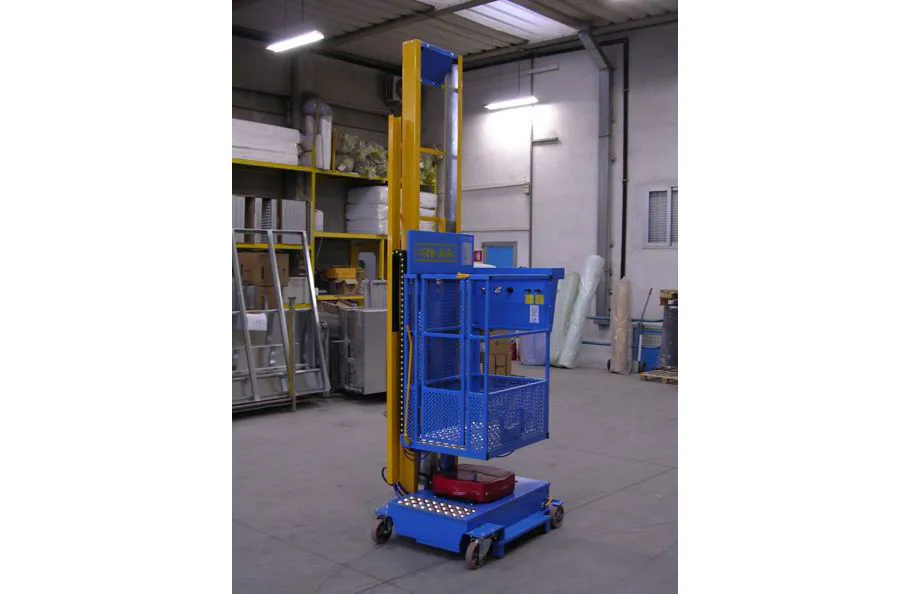

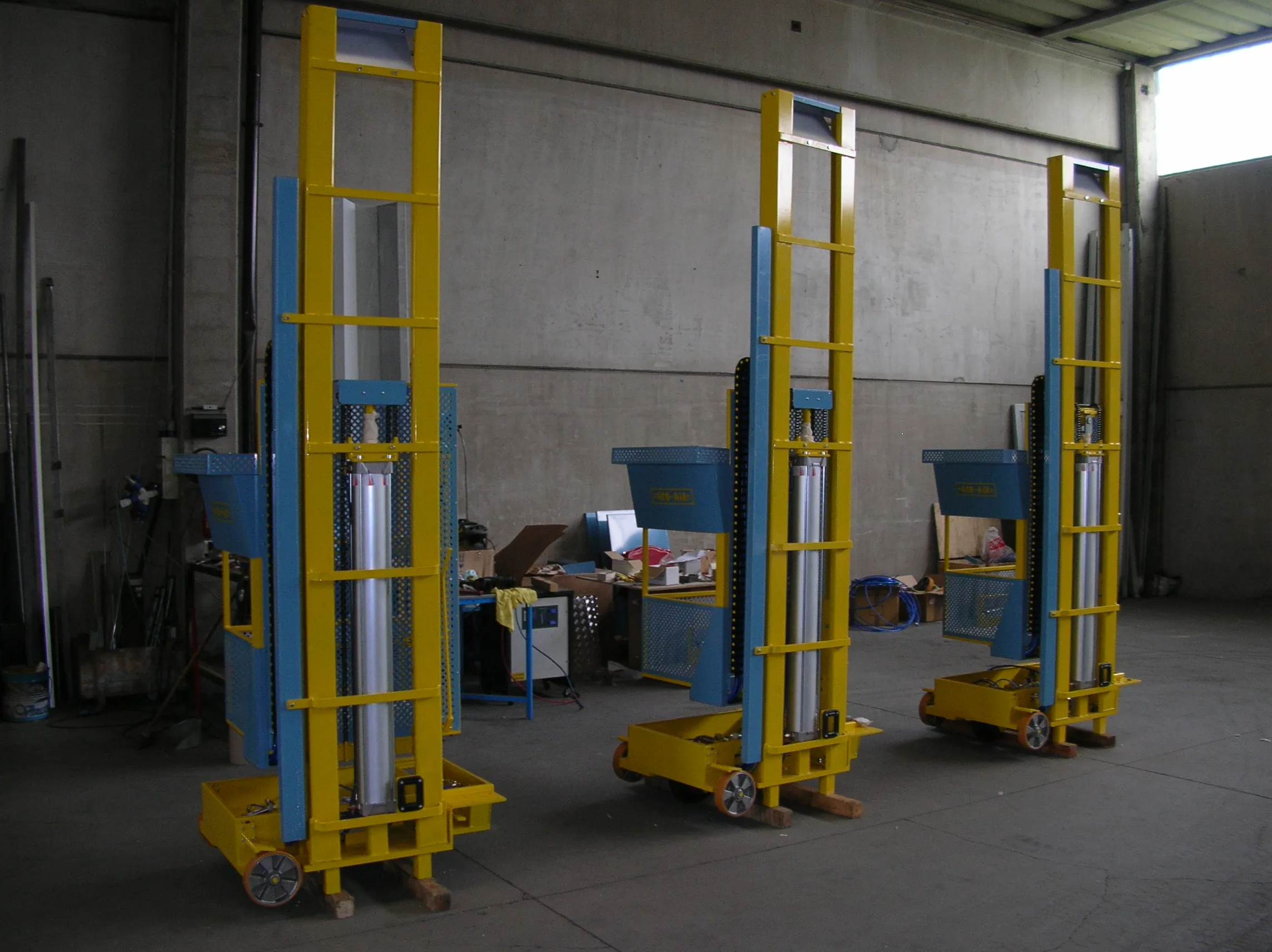

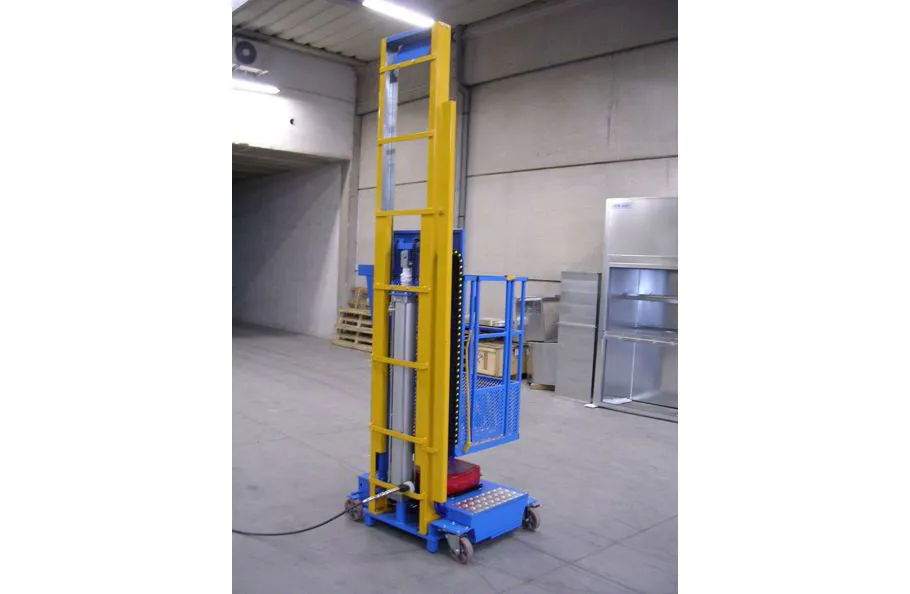

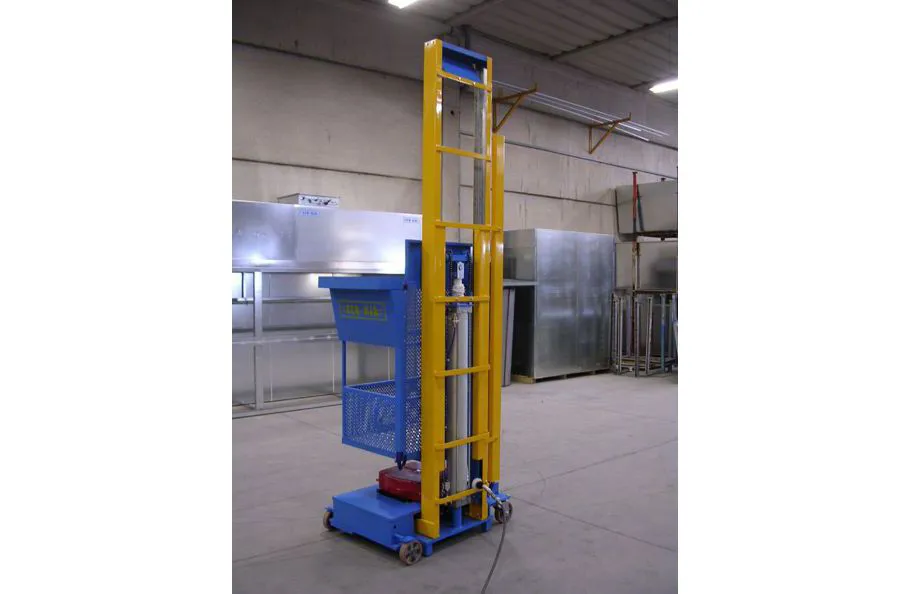

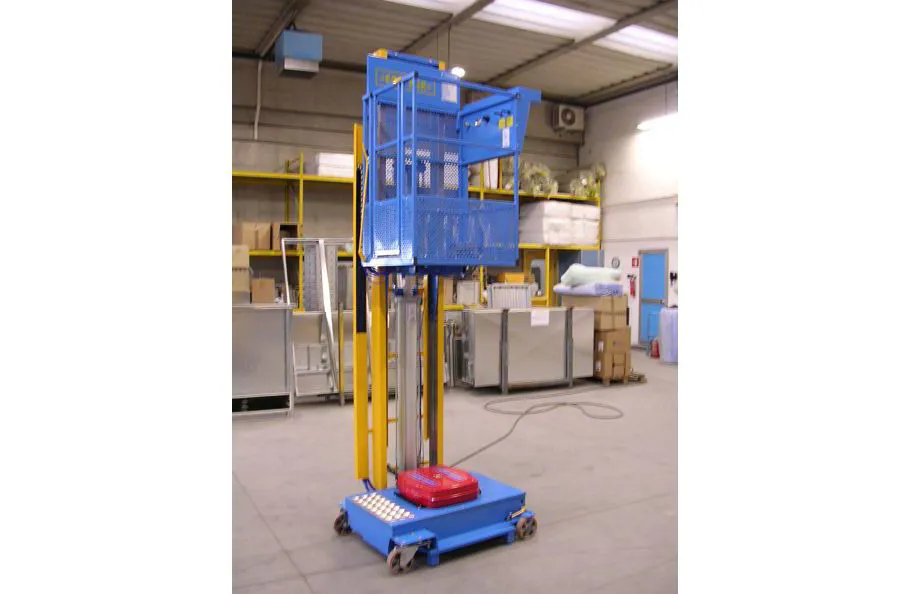

Eco-Lift pneumatic elevator
The Eco-Lift is a pneumatic elevator designed to replace ladders, scaffolding, and similar equipment, creating a safer and more efficient work environment by offering improved visibility and accessibility. Its compressed air technology makes it particularly suitable for use in hazardous environments where the risk of explosion is present, ensuring safe operation even under critical conditions.

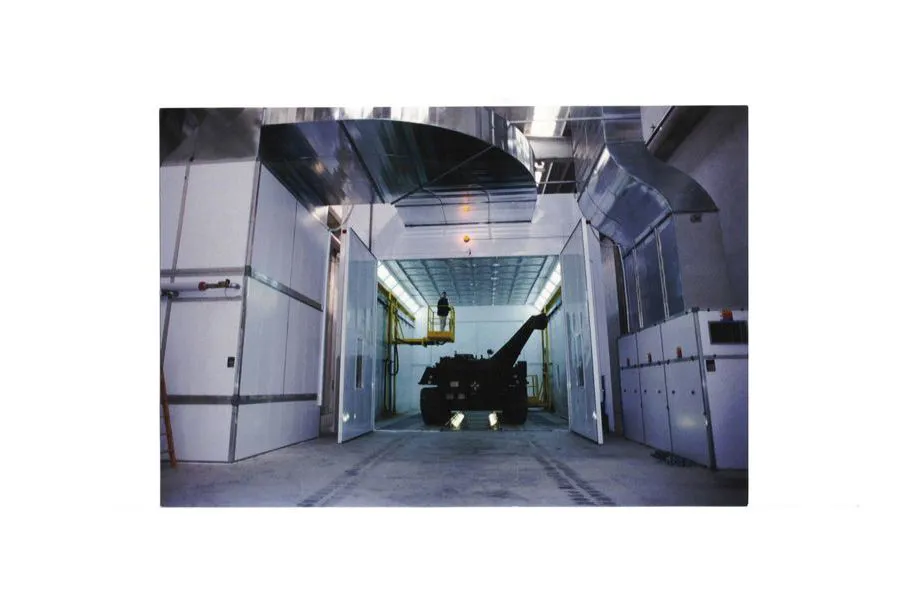

Especially ideal for coating booths, the Eco-Lift moves both vertically and longitudinally within the workspace, allowing operators to perform painting tasks on upper sections of components without any physical contact with the object. Thanks to its adaptable design—with fixed or swivel wheels—it can also be used for maintenance and other industrial operations requiring elevated access.
Key features of the Eco-Lift
- Pneumatic operation: Powered exclusively by compressed air, the Eco-Lift eliminates the hazards associated with electric or hydraulic systems.
- In-basket controls: Operators can fully control movement—drive, lift, and lower—directly from the basket. Manual valves control lifting and driving, while a foot pedal is used to activate forward motion.
- Compressed air connection with detachable support: The basket includes a built-in compressed air connection, reducing the need for long hoses and increasing operational flexibility.
- Capacity and height: With a maximum load capacity of 140 kg and a lift height of 2,750 mm, operators can work safely at heights of up to 4.8 meters, ideal for high-reach painting and maintenance tasks.
- Speed: At 8 bar, the lift moves longitudinally at around 10 meters per minute. At 5.5 bar, it rises vertically at the same rate.
Additional features
- Compressed air supply: Equipped with a 15-meter automatic hose reel, offering up to 29 meters of working range.
- Customization options: Standard Eco-Lift models can be equipped with fixed or swivel wheels for greater mobility. A version with fixed wheels and lateral wall connections is also available for specialized use in paint booths.
Benefits of the Eco-Lift pneumatic elevator
- Enhanced safety: Powered by compressed air, the Eco-Lift greatly reduces the risks compared to electric or mechanical systems, making it the ideal solution for explosion-prone environments.
- Ease of use and comfort: All controls are accessible from the basket, allowing the operator to move, lift, and position themselves without needing to step down—saving time and improving productivity.
- Operational flexibility: The lift can also be fixed to the floor using a U-profile mounting system and easily repositioned for different applications such as painting, maintenance, and more.
- Versatility: Thanks to a built-in steering system, the Eco-Lift can approach or retreat from workpieces without ever making contact, as safety guides ensure controlled, obstacle-free movement.
Why Choose Eco-Lift?
The Eco-Lift is an innovative, safe, and reliable lifting solution for industrial environments. Whether used in paint booths or for general maintenance, it improves productivity while significantly reducing the risk of workplace accidents.For more information or to request a custom consultation, don’t hesitate to contact us. Our team is ready to help you find the ideal solution for your operation.
